SentinelX

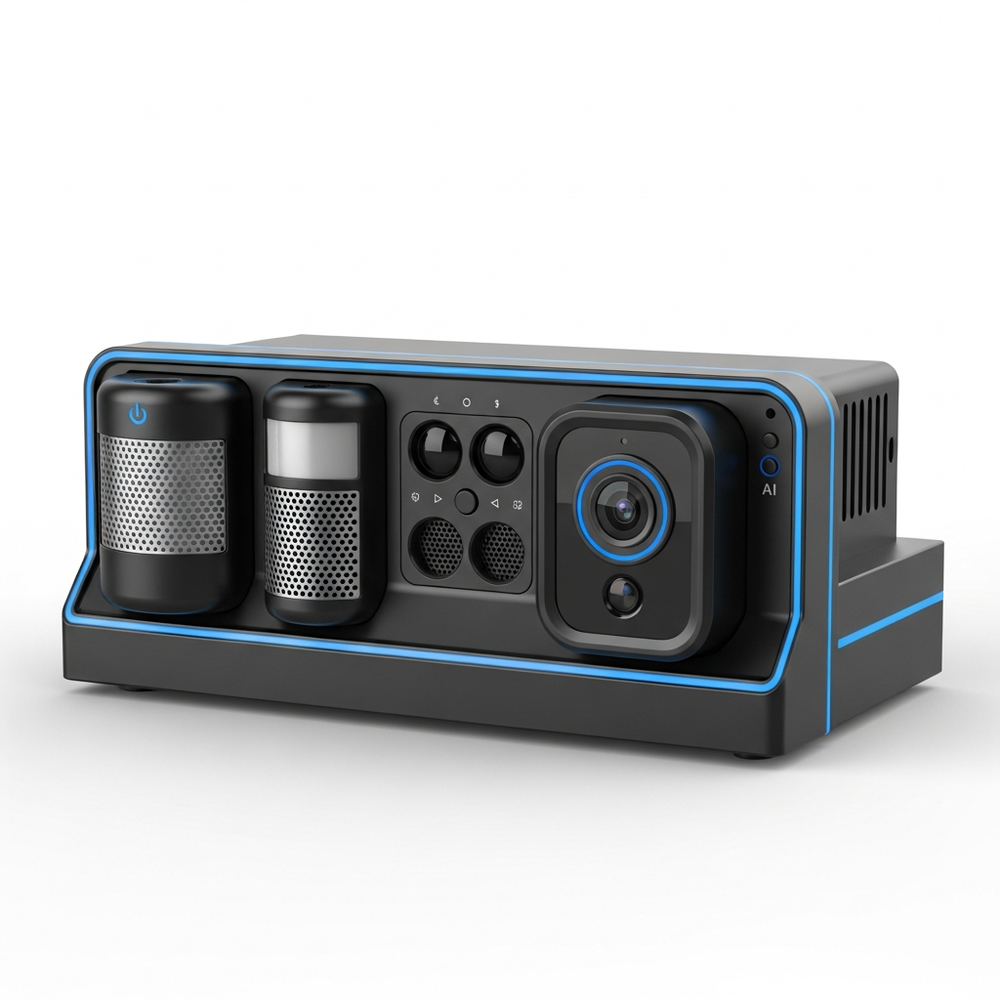

SentinelX Hydra Multi-Sensor System
excl. VAT
AI-Powered Multi-Sensor Platform
The SentinelX Hydra Multi-Sensor System represents the ultimate sensor fusion solution. By combining four complementary technologies in one integrated platform, Hydra provides unprecedented situational awareness.
Each Hydra unit integrates a 360° radar for motion detection, lidar for precise distance measurement, 4K PTZ camera for visual verification, and audio sensors for sound-related events. The central AI combines all inputs for validated alarms.
Perfect for complex environments where single-sensor technology falls short, such as port areas, industrial complexes, and stadiums.
Key Features
- 360° pulsed Doppler radar
- 3D lidar with 200m range
- 4K PTZ camera with 30x optical zoom
- Acoustic sensor array (8 microphones)
- Edge AI processing with sensor fusion
- All-weather operation (IP67)
- Self-calibrating sensors
- Open platform for integrations
Technical Specifications
| Radar Range | 400m (person) / 800m (vehicle) |
| Lidar Points | 300,000 points/second |
| Camera | 4K, 30x zoom, WDR |
| Audio | 8-ch array, 360° coverage |
| Processing | NVIDIA Orin edge platform |
| Power | PoE++ (90W) or 48VDC |
| Mounting | Mast, roof, or wall |
| Warranty | 5 years full coverage |
Installation
Premium installation with complete system integration. Includes structural assessment for mounting, electrical preparation, network design, sensor calibration, and AI training for your specific environment.
Maintenance Options
- Monthly sensor calibration
- Quarterly AI model updates
- 24/7 remote health monitoring
- Preventive maintenance contract
Delivery Time: Installation within 10-14 business days
- Delivery Time: 10-14 days
- Installation Included
- ISO 27001 Certified
- 24/7 Technical Support
View the complete technical specifications in the product description above.
Professional installation by certified technicians included. Average installation time: 3-5 business days depending on facility size. Includes network design, cabling, mounting, and full system configuration.
24/7 remote monitoring and support
Preventive maintenance contract (annual)
Firmware updates and security patches
Hardware replacement within 4-hour SLA
Installation within 10-14 business days
Professional installation included
Payment via Mondu (invoice/installments)
24/7 technical support
ISO 27001 Certified
5-year warranty
